Description

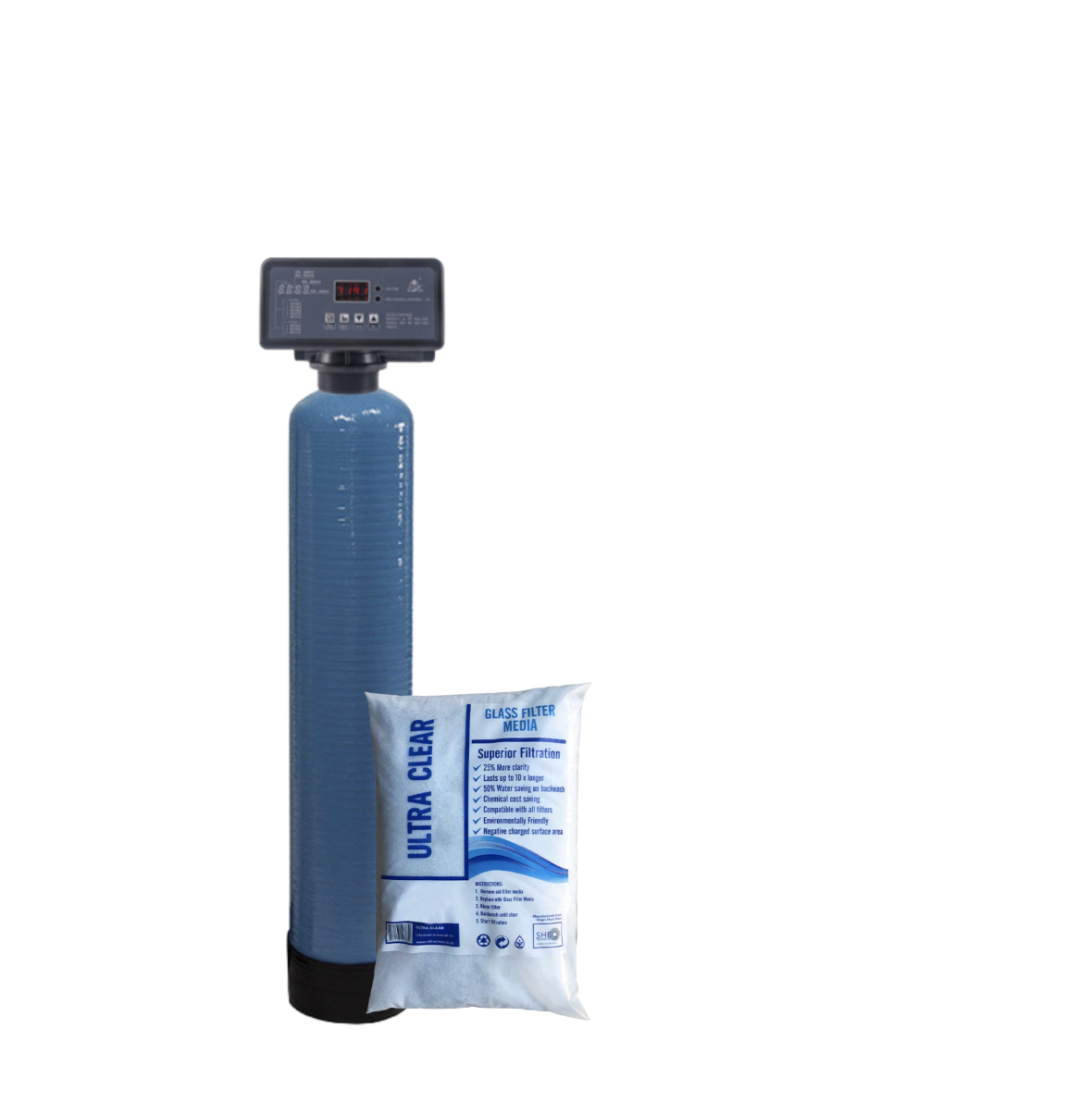

Discover a new standard in filtration purity with our Automatic Glass Media Vessels. Offering more than triple the cleaning power of traditional silica sand, glass media delivers a superior, highly efficient filtration solution. Paired with a digital automatic control head, this system keeps your water crystal clear with minimal upkeep — saving you water, energy, and time.
Features
- Triple Cleaning Power: The smooth, non-porous surface of glass media captures finer particles and reduces turbidity far more effectively than sand.
- Fully Automated Operation: The digital head manages every backwash and rinse cycle according to your programmed schedule.
- Reduced Water Waste: Less prone to clogging and bio-fouling, glass media requires shorter, less frequent backwash cycles.
- Eco-Friendly Choice: Made from recycled glass, offering a sustainable, environmentally responsible way to filter water.
- Durable Construction: Sturdy FRP vessels available in Blue or Grey to match your aesthetic or installation needs.
- Clearer Results: Removes microscopic debris that standard sand filters miss, delivering noticeably clearer water.
How It Works
- Superior Particle Capture: As water passes through the glass media bed, its non-porous surface traps fine contaminants efficiently.
- Bio-Resistant Surface: Unlike sand, glass resists bacteria and biofilm buildup, keeping the media cleaner for longer.
- Automatic Refresh: On schedule, the automatic valve triggers a high-flow backwash to clear out trapped impurities.
- The Outcome: Cleaner, clearer water from a system that’s more efficient, more hygienic, and easier to maintain.
Specifications
| Attribute | Details |
|---|---|
| Brand | Blue Spot Water |
| Category | High-Efficiency Automatic Filtration |
| Vessel Material | Fiber – Reinforced Plastic (FRP) |
| Vessel Colors | Blue or Grey (Option available) |
| Head Type | Digital Automatic Filter Valve |
| Media Type | High-Grade Recycled Glass Media |
| Pressure Range | 2.0 – 6 Bar Max |
| Power Required | Yes (Standard 220V Plug) |
| Warranty | Limited (12 Months) |
Maintenance
- Power Supply: Keep the control head connected to power at all times to maintain your automated cleaning schedule.
- System Monitoring: Check the digital display periodically to confirm the system is cycling as intended.
- Media Longevity: Highly resistant to degradation, the glass media typically only needs inspection every 5 years.
Model Comparison
| Model | Vessel Size | Media Volume | Flow Rate (Approx) |
|---|---|---|---|
| 844 Auto Glass | 8″ x 44″ | ~25kg | 1000 L/H (1T) |
| 1054 Auto Glass | 10″ x 54″ | ~50kg | 2000 L/H (2T) |
| 1354 Auto Glass | 13″ x 54″ | ~75kg | 3000 L/H (3T) |
| 1465 Auto Glass | 14″ x 65″ | ~125kg | 4000 L/H (4T) |
| 1665 Auto Glass | 16″ x 65″ | ~150kg | 5000 L/H (5T) |
| 1865 Auto Glass | 18″ x 65″ | ~225kg | 8000 L/H (8T) |
| 2472 Auto Glass | 24″ x 72″ | ~400kg | 10000 L/H (10T) |
What’s in the Box
- 1 x FRP Vessel (Blue or Grey, as selected)
- 1 x Automatic Digital Filter Control Head
- 1 x Power Transformer/Adapter
- 1 x Internal Riser Pipe with Top/Bottom Strainers
- Full Charge of High-Efficiency Glass Media
- 1 x Installation Diagram
Note: A nearby power outlet and dedicated drainage point are required for discharge water. For optimal performance on larger units (1665 and up), confirm your water supply can provide the flow rate needed to lift and clean the media bed during the automatic backwash cycle.
