Description
Meet the toughest, most effective sand filter alternative on the market. Our Clino Media Vessels use high-grade Clino media and a unique microporous structure to deliver crystal-clear water — with a level of efficiency standard sand simply can’t match.
Features
- Filters down to 5 microns — far beyond conventional sand
- Built to last — extreme hardness resists wear and breakdown
- Removes more than sediment — also targets low levels of heavy metals and ammonia
- Simple manual backwash head — no electricity required
- Durable FRP vessel in Blue or Grey
- High flow, no compromise — full contact time for cleaner results
How It Works
- Water enters the vessel and flows down through the bed of Clino media.
- Physical filtration: The media’s microporous structure traps fine particles and sediment as water passes through.
- Chemical filtration: Clino’s natural ion-exchange properties pull ammonia and trace heavy metals out of the water stream.
- Manual backwash: When it’s time to clean, flip the manual head to reverse the flow, flushing trapped sediment out through the drain line and refreshing the media bed.
- Result: Water that’s cleaner both physically and chemically — ready to flow on to the next stage of your system.
Specifications
| Attribute | Details |
|---|---|
| Brand | Blue Spot Water |
| Category | High-Performance Sediment Filtration |
| Vessel Material | Fiber-Reinforced Plastic (FRP) |
| Vessel Colors | Blue or Grey |
| Head Type | Manual Filter Control Valve |
| Media Type | Clinop (High-Grade Zeolite) |
| Pressure Range | 1.5 – 6 Bar Max |
| Power Required | No (Non-electric) |
| Warranty | 12 Months (Vessel & Head) |
Maintenance
- Backwash every 7–14 days, depending on incoming water quality
- Inspect media every 3–5 years — it outlasts sand by far, but check periodically
Model Sizes
| Model | Vessel Size | Media Volume | Flow Rate |
|---|---|---|---|
| 844 Clino | 8″ x 44″ | ~25–30kg | 1000 L/H (1T) |
| 1054 Clino | 10″ x 54″ | ~50–60kg | 2000 L/H (2T) |
| 1354 Clino | 13″ x 54″ | ~75–85kg | 3000 L/H (3T) |
| 1465 Clino | 14″ x 65″ | ~100–115kg | 4000 L/H (4T) |

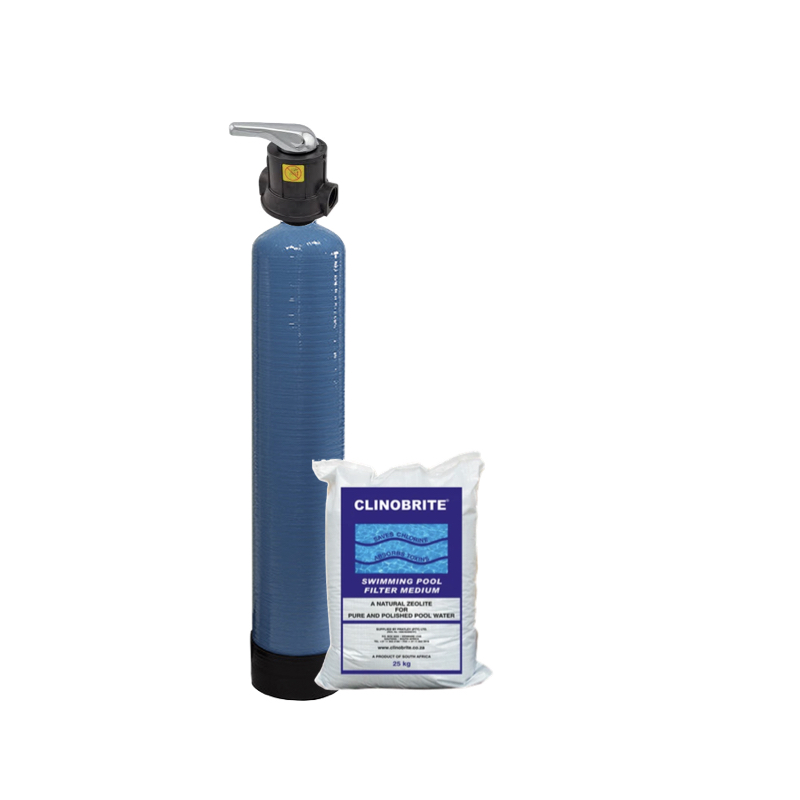

What’s in the Box?
- 1 x FRP Vessel (size as per selection)
- 1 x Manual Filter Control Head
- 1 x Internal Riser Pipe with Top/Bottom Strainers
- Full charge of High-Quality Clino Media
Note: Built for sediment and particle removal. Make sure your incoming pressure is strong enough to lift the media bed during backwash, and that a drainage point is available.
