Description

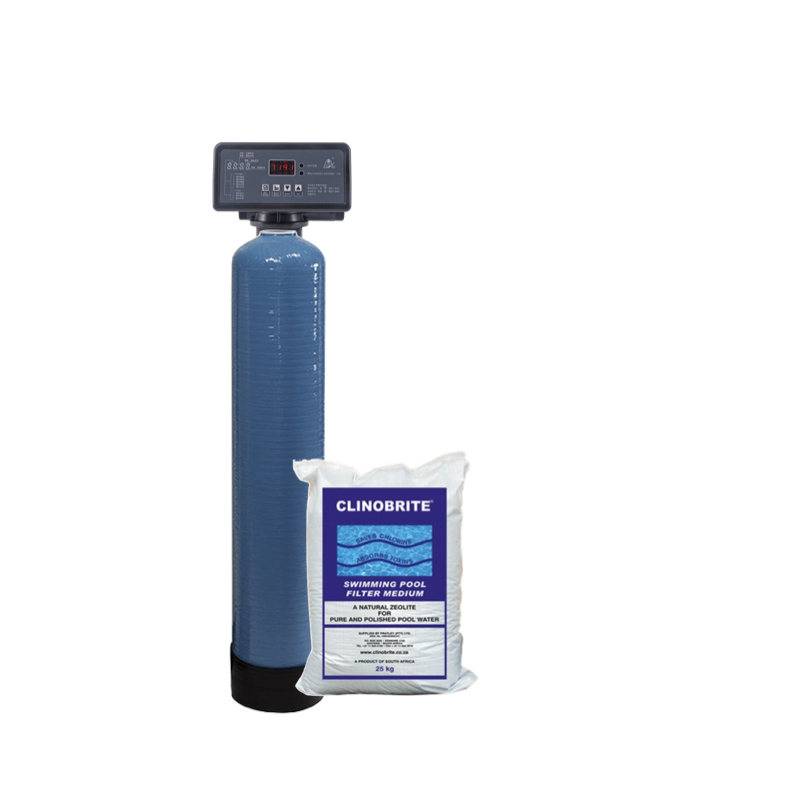

Take the guesswork out of water filtration with our Automatic Clino Media Vessels — a fully automated, high-performance system built for reliable results. Powered by Clino, a premium mineral media that outlasts and outperforms conventional sand filters, these units capture finer particles while standing up to years of heavy use. Thanks to the built-in digital control head, cleaning cycles run on their own, so your water stays consistently clear with virtually no hands-on effort.
Features
- Hands-Free Maintenance: The digital head handles backwash and rinse cycles automatically, right on schedule.
- Superior Filtration Power: Captures particles down to 5 microns, delivering noticeably cleaner results than standard sand systems.
- Natural Contaminant Reduction: The media’s microporous structure helps lower ammonia and trace heavy metals without added chemicals.
- Effortless, Reliable Filtration: Perfectly suited to busy homes or commercial properties that need dependable filtration without daily attention.
- Durable by Design: Rugged FRP vessels, available in Blue or Grey, combined with hard-wearing Clinop media built to endure.
- Smart Digital Control: A clear display lets you track cycle status and adjust cleaning times, typically scheduled overnight.
How It Works
- Deep Bed Filtration: Water passes through the porous Clino media, which physically blocks impurities as it flows.
- Adsorption: The media’s natural composition draws in and holds contaminants that ordinary filters can’t catch.
- Automatic Backwash: On a set schedule, the valve reverses flow to lift trapped debris and flush it out through the drain.
- The Outcome: Clean, sediment-free water — automatically, with no daily maintenance required.
Specifications
| Attribute | Details |
|---|---|
| Brand | Blue Spot Water |
| Category | Automatic High-Performance Filtration |
| Vessel Material | Fiber-Reinforced Plastic (FRP) |
| Vessel Colors | Blue or Grey (Option available) |
| Head Type | Digital Automatic Filter Valve |
| Media Type | Clinop (High-Grade Zeolite) |
| Pressure Range | 2.0 – 6 Bar Max |
| Power Required | Yes (Standard 220V Plug) |
| Warranty | Limited (12 Months) |
Maintenance
- Power Supply: Keep the unit plugged in at all times so the internal clock and scheduled cleaning cycles stay active.
- Media Check-Up: The media is built to last, but a professional inspection every 3–5 years is recommended.
- Drain Line: Make sure the drainage path stays clear so automatic discharge can run smoothly during cleaning cycles.
Model Comparison
| Model | Vessel Size | Media Volume | Flow Rate (Approx) |
|---|---|---|---|
| 844 Auto Clino | 8″ x 44″ | ~25kg | 1000 L/H (1T) |
| 1054 Auto Clino | 10″ x 54″ | ~50kg | 2000 L/H (2T) |
| 1354 Auto Clino | 13″ x 54″ | ~75kg | 3000 L/H (3T) |
| 1465 Auto Clino | 14″ x 65″ | ~100kg | 4000 L/H (4T) |
| 1665 Auto Clino | 16″ x 65″ | ~150kg | 5000 L/H (5T) |
| 1865 Auto Clino | 18″ x 65″ | ~200kg | 8000 L/H (8T) |
| 2472 Auto Clino | 24″ x 72″ | ~350kg | 10000 L/H (10T) |
What’s in the Box
- 1 x FRP Vessel (Blue or Grey)
- 1 x Automatic Digital Filter Control Head
- 1 x Power Transformer/Adapter
- 1 x Internal Riser Pipe with Top/Bottom Strainers
- Full Charge of High-Quality Clino Media
Note: A power outlet and dedicated drainage point are required for installation. For larger models (1465 and above), confirm your plumbing and water supply can handle the flow rate needed to backwash the larger media volume effectively.
