Description
Improve your water quality with our Automatic Activated Carbon Vessels — the ultimate solution for removing unpleasant tastes, odors, and harmful chemicals. This system uses high-grade activated carbon to effectively adsorb chlorine, pesticides, and organic contaminants. Paired with an integrated digital control head, the system runs its own self-cleaning cycles automatically, keeping your carbon bed fresh and effective with zero manual effort.
Features
- Chemical Removal: Highly effective at removing chlorine, VOCs (Volatile Organic Compounds), and pesticides.
- Improved Taste & Odor: Eliminates the “swimming pool” smell and metallic tastes for better-tasting drinking and cooking water.
- Fully Automated: The digital control head manages backwash cycles to prevent sediment buildup and media packing.
- Set-and-Forget: Programmed to clean itself, usually overnight, so you always have access to purified water.
- Premium Vessel Design: High-performance FRP vessels available in Blue or Grey to suit your installation preferences.
- Comprehensive Protection: Safeguards downstream equipment and RO membranes from chlorine damage.
How It Works
- Adsorption Process: Water passes through the porous carbon media, which traps chemical impurities across its vast surface area.
- Organic Filtration: Carbon acts as a magnet for organic compounds, significantly improving the clarity and safety of the water.
- Automatic Backwash: The valve periodically reverses flow to fluff the carbon bed and flush away any trapped physical sediment.
- The Outcome: Refreshing, odor-free, and chemical-free water delivered automatically to your whole home or business.
Specifications
| Attribute | Details |
|---|---|
| Brand | Blue Spot Water |
| Category | Chemical & Odor Removal |
| Vessel Material | Fiber-Reinforced Plastic (FRP) |
| Vessel Colors | Blue or Grey (Option available) |
| Head Type | Digital Automatic Filter Valve |
| Media Type | Activated Carbon 20L / +-7Kg (12×30 mesh) |
| Pressure Range | 2.0 – 6 Bar Max |
| Power Required | Yes (Standard 220V Plug) |
| Warranty | Limited (12 Months) |
Maintenance
- Power Supply: Keep the unit plugged in to ensure the automatic cleaning schedule is maintained.
- Media Replacement: For optimal chemical removal, activated carbon should be replaced every 12–24 months (depending on chlorine levels and usage).
- Salt/Chemicals: No salt or chemicals are required for this system to operate.
Model Comparison
| Model | Vessel Size | Media Volume | Flow Rate (Approx) |
|---|---|---|---|
| 844 Auto Carbon | 8″ x 44″ | ~20L | 1000 L/H (1T) |
| 1054 Auto Carbon | 10″ x 54″ | ~40L | 2000 L/H (2T) |
| 1354 Auto Carbon | 13″ x 54″ | ~60L | 3000 L/H (3T) |
| 1465 Auto Carbon | 14″ x 65″ | ~80kg | 4000 L/H (4T) |
| 1665 Auto Carbon | 16″ x 65″ | ~120kg | 5000 L/H (5T) |
| 1865 Auto Carbon | 18″ x 65″ | ~160kg | 8000 L/H (8T) |
| 2472 Auto Carbon | 24″ x 72″ | ~280kg | 10000 L/H (10T) |

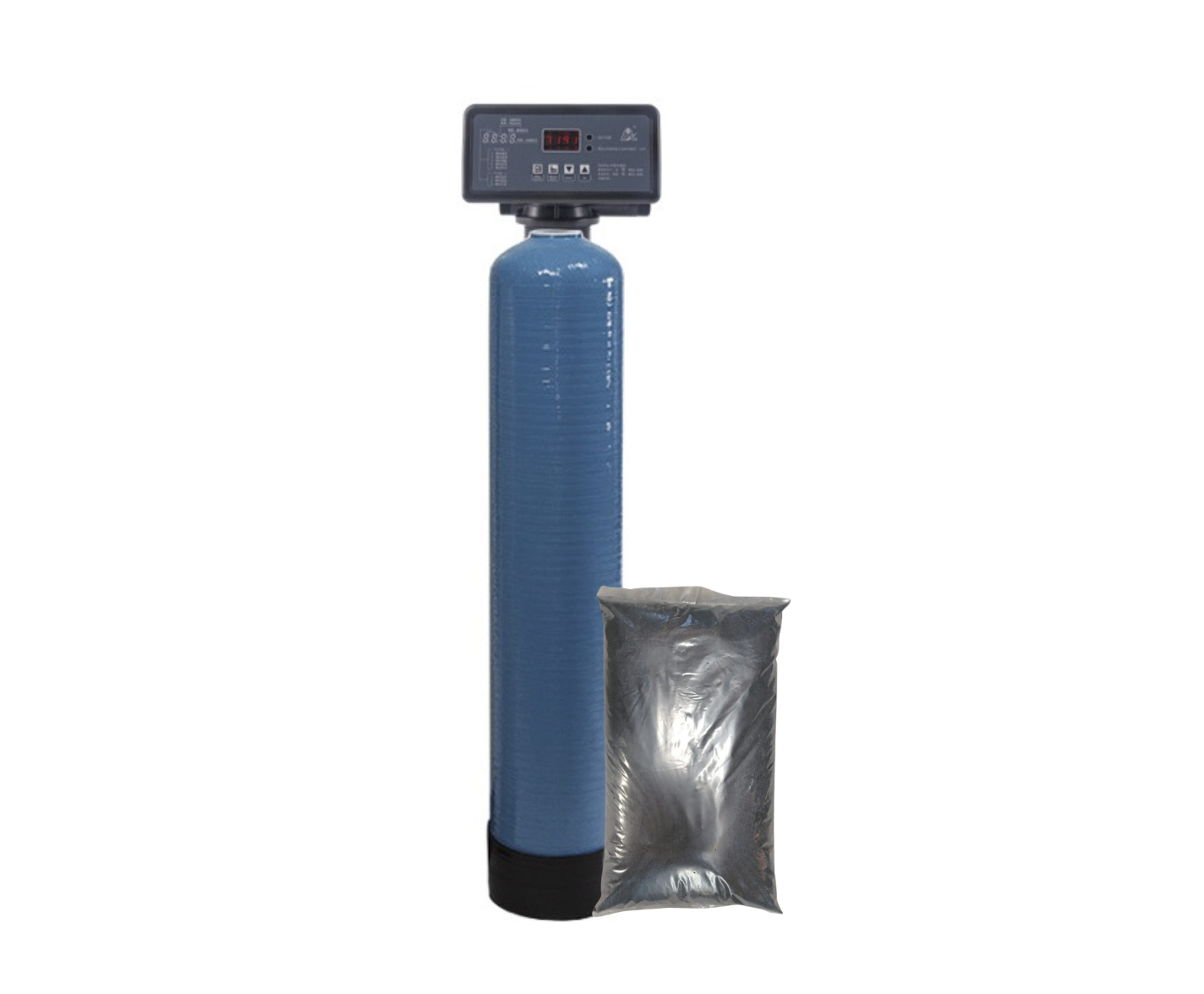

What’s in the Box
- 1 x FRP Vessel (Blue or Grey, as selected)
- 1 x Automatic Digital Filter Control Head
- 1 x Power Transformer/Adapter
- 1 x Internal Riser Pipe with Top/Bottom Strainers
- Full Charge of High-Grade Activated Carbon Media
- 1 x Installation Diagram
