Description

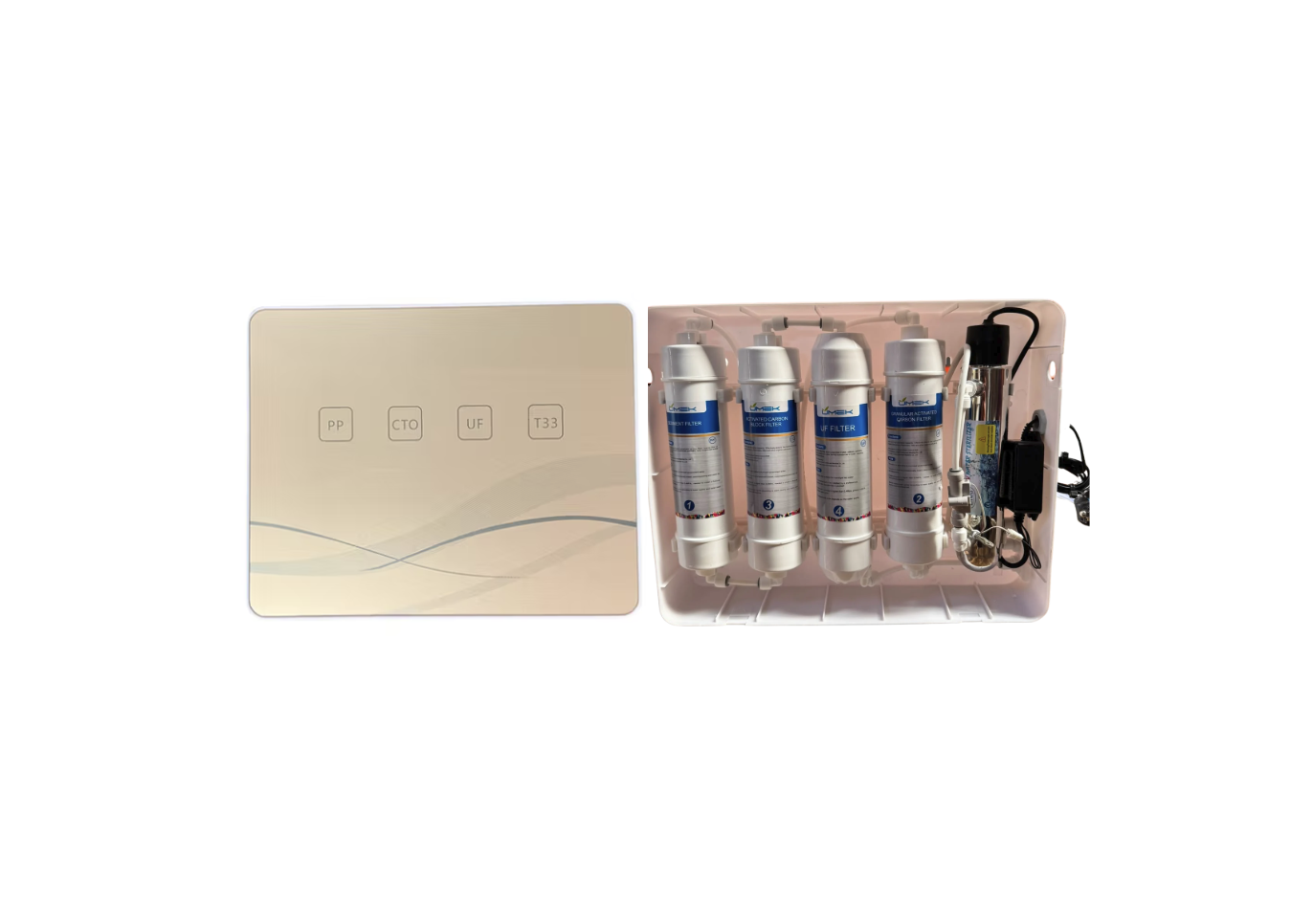

The Purifier UF Inline 5 Stage system offers a high-performance, space-saving solution for clean drinking water. Utilizing Ultra-Filtration (UF) technology combined with a 6W UV sterilizer, this system removes microscopic contaminants — including bacteria, viruses, and parasites — without the need for a storage tank. Its slim, inline design makes it the perfect fit for under-sink installations where space is at a premium.
Features
- Ultra-Filtration Technology: Features a 0.01-micron UF membrane that blocks bacteria and viruses while keeping healthy minerals intact.
- 6W UV Sterilization: Adds a final biological safeguard, destroying 99.9% of any remaining bacteria and viruses that pass through the membrane.
- No Wastewater: Unlike Reverse Osmosis, this system produces zero wastewater, making it an eco-friendly choice.
- Compact Inline Design: Slim profile filters take up minimal space under the counter.
- Quick-Connect Fittings: Designed for a secure, leak-proof DIY installation.
- High Flow Rate: Provides filtered water instantly without the wait of a storage tank.
How It Works
Stage 1: Polypropylene (PP) Sediment Filter: Removes physical particles like sand, rust, and silt to protect the subsequent filters.
Stage 2: Granular Activated Carbon (GAC) Filter: Absorbs chlorine, organic chemicals, and unpleasant odors for better-tasting water.
Stage 3: Ultra-Filtration (UF) Membrane: The core of the system. Its 0.01-micron pores block biological contaminants and fine suspended solids.
Stage 4: Post Carbon (PO) Filter: A final “polishing” stage that removes any trace tastes or odors, ensuring crisp, refreshing water.
Stage 5: 6W UV Sterilizer: As water exits the system, it passes through a UV chamber where 254nm light destroys any remaining bacteria or viruses, providing complete biological protection with no chemicals added.
| Attribute | Details |
|---|---|
| Brand | Purifier |
| Model | UF Inline 5-Stage |
| Category | Water Purification / Under-Counter |
| Filtration Accuracy | 0.01 Micron (UF) |
| Inlet Connection | 1/4″ (6mm) Push-fit or T-piece |
| Pressure Range | 1.0 – 4.0 Bar |
| Temperature Range | 4°C – 40°C |
| Power Required | Yes (220V, for UV sterilizer only) |
| Wastewater Ratio | Zero (1:0) |
| Warranty | Limited (12 Months) |
Maintenance
To maintain water safety and flow rate, replace your filters according to the following schedule:
- Stages 1, 2, & 4: Replace every 6-12 months.
- Stage 3 (UF Membrane): Replace every 12 months (depending on source water quality).
- Stage 5 (UV Lamp): Replace every 12 months, even if the lamp still glows — germicidal output depletes over time.
What’s in the Box?
- 1 x 4-Stage Inline Filter Assembly (PP/GAC/UF/PO)
- 1 x 6W UV Sterilizer with Power Adapter
- 1 x Deluxe Chrome Goose-neck Faucet
- 3 Meters x 6mm Food-grade Piping
- 1 x Feed Water T-Piece Valve
- 1 x Mounting Brackets/Clips
- 1 x Installation Instruction Manual
Note: This system is designed for use with municipal (tap) water. If you are using borehole or well water, a pre-analysis is recommended to ensure the UF membrane and UV stage are suitable for the sediment and biological load. Unlike the standard non-electric UF Inline system, this unit requires a 220V power outlet to operate the UV sterilizer.
