Inline Chlorinator with or without Chlorine Cartridges

Description

The Klorman Inline Refill Cartridge is a high-performance chlorine dispenser designed specifically to deliver Hypochlor (Calcium Hypochlorite). These cartridges provide a continuous, controlled dosage of solid chlorine into water systems, eliminating the mess and hazards of liquid bleach or chlorine gas. Whether you are treating a borehole, a greenhouse, or an industrial abattoir, these cartridges offer a simple and affordable sanitization solution.

Key Features

• Advanced Hypochlor Formula: Uses stabilized Calcium Hypochlorite, highly effective against bacteria, viruses, and fungi
• Residue-Free & Non-Corrosive: Engineered to leave no harmful residues, making it safer for plumbing and environmentally friendly for plants
• Fully Adjustable Dosing: Cartridges work with the Klorman spring-loaded system, allowing concentrations from less than 5 ppm up to 200 ppm
• Versatile Application: Safe for a wide range of uses — from drinking water disinfection to high-sanitation environments like hospitals and abattoirs
• Long Shelf Life: Compact and durable design ensures the chlorine stays stable until it is ready to be used

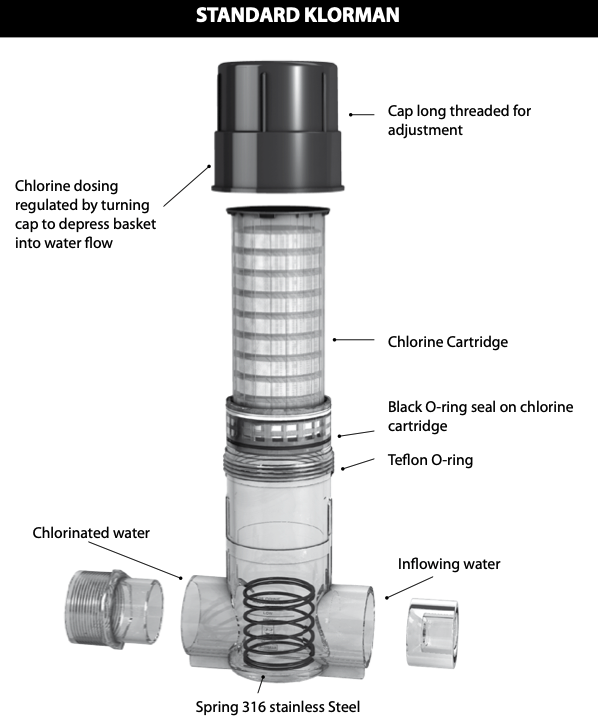

How It Works
The cartridge is inserted into the Klorman Inline body. As water passes through the unit, the chlorine tablets inside the cartridge dissolve slowly.

• The Spring Mechanism: Automatically lowers or raises the cartridge into the water flow based on your settings
• Immersion Control: The deeper the cartridge sits in the flow, the higher the chlorine concentration

Specifications

Maintenance & Lifespan

• Variable Replacement: There is no fixed schedule. A cartridge may last from a few weeks to several months depending on your flow rate (LPH) and required dosage
• Usage Tip: Always monitor the cartridge level regularly, especially in high-volume applications like swimming pools or cooling towers
• Draining: To prevent tablets from becoming saturated and disintegrating prematurely, ensure the unit is installed so it can drain after use

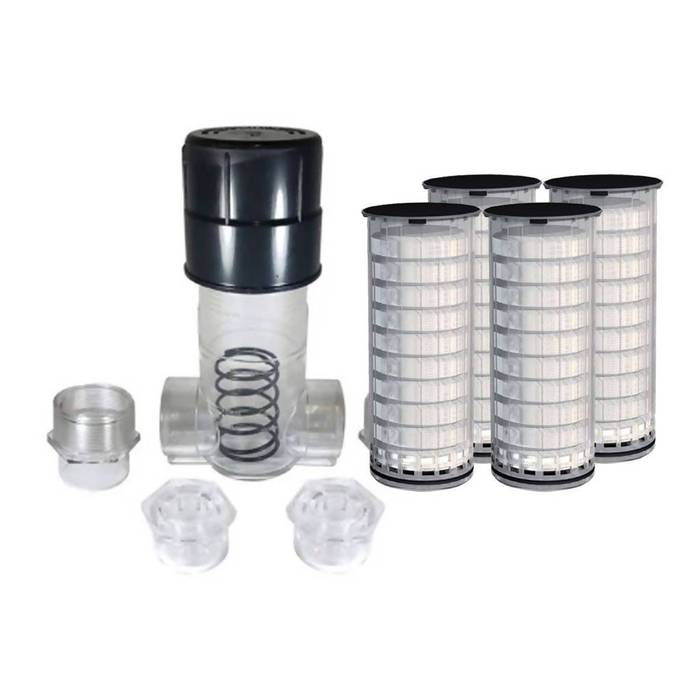

What’s in the Box?
Available in single units or multi-packs:

• Single Refill: 1x Cartridge containing 10 chlorine pieces
• Case of 4: (Standard retail pack) for a consistent supply

Common Applications

• Agriculture: Greenhouses, piggeries, and livestock water troughs
• Food Industry: Abattoirs, dairies, and fresh produce washing
• Medical: Hospital sanitation and bio-spill disinfection
• Domestic: Borehole water sterilization and pool maintenance

Dimensions & Weights

• Single Cartridge: 9cm x 9cm x 22cm | 0.9kg
• Box of 4 (Case): 15cm x 15cm x 25cm | 4kg
