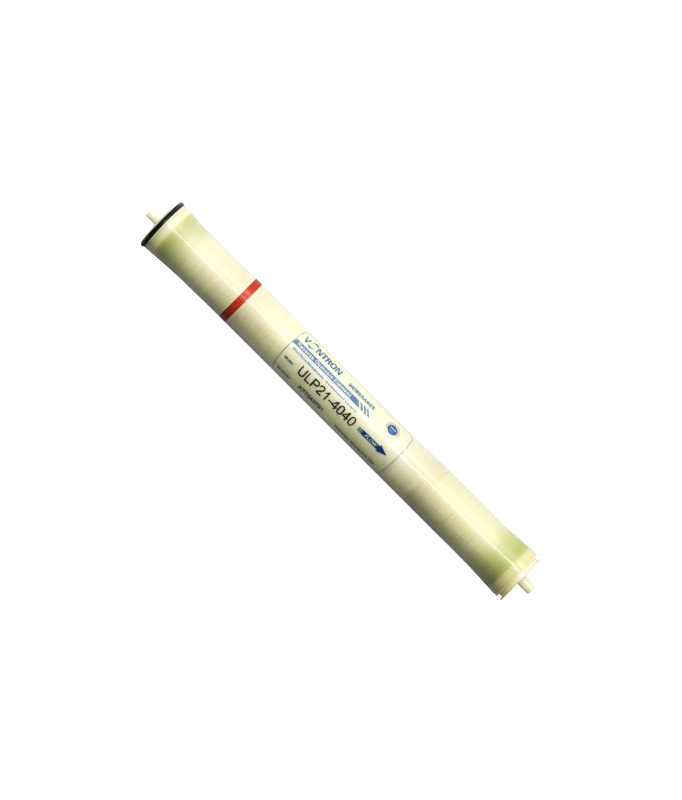

Vontron ULP21-4040 Reverse Osmosis Membrane
High-Performance Ultra-Low Pressure Element for Energy-Efficient Desalination
SKU : FM4040VULP
Availability : In Stock
To be Send on : Same working day
When do I get it : Click Here
Return Policy : Click Here
Ask a Question : Click Here
Description
The Vontron ULP21-4040 is a premier Ultra-Low Pressure (ULP) aromatic polyamide compound membrane element. Newly developed for energy efficiency, it operates at approximately two-thirds of the pressure of regular low-pressure membranes while maintaining an exceptionally high salt rejection rate.
Features
-
Ultra-Low Pressure (ULP): Engineered to achieve high permeate flow at just 150 psi (1.03 MPa), significantly reducing power consumption and wear on pumps.
-
Superior Rejection: Delivers a stable salt rejection rate of 99.5%, ensuring high-purity water for sensitive industries.
-
Cost-Efficient: Lower operating pressure requirements allow for the use of more economical pumps, piping, and pressure vessels.
-
Broad Application: Optimized for treating water sources with salt concentrations lower than 2,000 ppm, including tap and municipal water.
-
Industrial Standard: Designed with a 4-inch diameter and 40-inch length to fit all standard commercial RO housings.
What Does It Do?
Vontron ULP series membranes act as a molecular-level barrier to provide ultra-pure water:
-
TDS Reduction: Removes up to 99.5% of dissolved salts, minerals, and heavy metals.
-
Pathogen Removal: Acts as a physical barrier to bacteria, viruses, and cysts.
-
Industrial Polishing: Widely used for boiler water replenishment, pharmaceutical production, and foodstuff processing.
-
Wastewater Reuse: Highly effective in the final stages of wastewater treatment and material concentration
| Attribute | Details |
| Model | ULP21-4040 |
| Average Permeate Flow |
2,400 GPD (9.1 m³/d) |
| Stable Rejection Rate | 99.5% |
| Active Membrane Area | 90 ft² (8.4 m²) |
| Testing Pressure | 150 psi (1.03 MPa) |
| Feed Spacer Thickness | 28 mil |
Maintenance & Operating Limits
To ensure a lifespan of 2 to 5 years, strict adherence to feedwater conditions is required:
-
Pre-treatment: Feedwater must have an SDI < 5 and a residual chlorine concentration of < 0.1 ppm to avoid permanent membrane damage.
-
Continuous Operation pH: 3 to 10.
-
Chemical Cleaning pH: 2 to 12 (Allows for aggressive cleaning to restore flux).
-
Initial Flush: For the first use, flush at low pressure for 15–25 minutes, then high pressure for 60–90 minutes. Discard all permeate from the first hour.
-
What’s in the Box?
-
1 x Vontron ULP21-4040 Reverse Osmosis Membrane Element (Vacuum sealed)
-
Diameter: ≈4 inches (99 mm)
-
Length: ≈40 inches (1,016 mm)
-
