Pump LEO ACM75 Centrifugal with Pressure Head (0.75kW, 1hp, 220V)
{{item.currency}} {{pricing}} - Out of Stock
SKU : PUL75CH
Availability : In Stock
To be Send on : Same working day
When do I get it : Click Here
Return Policy : Click Here
Ask a Question : Click Here

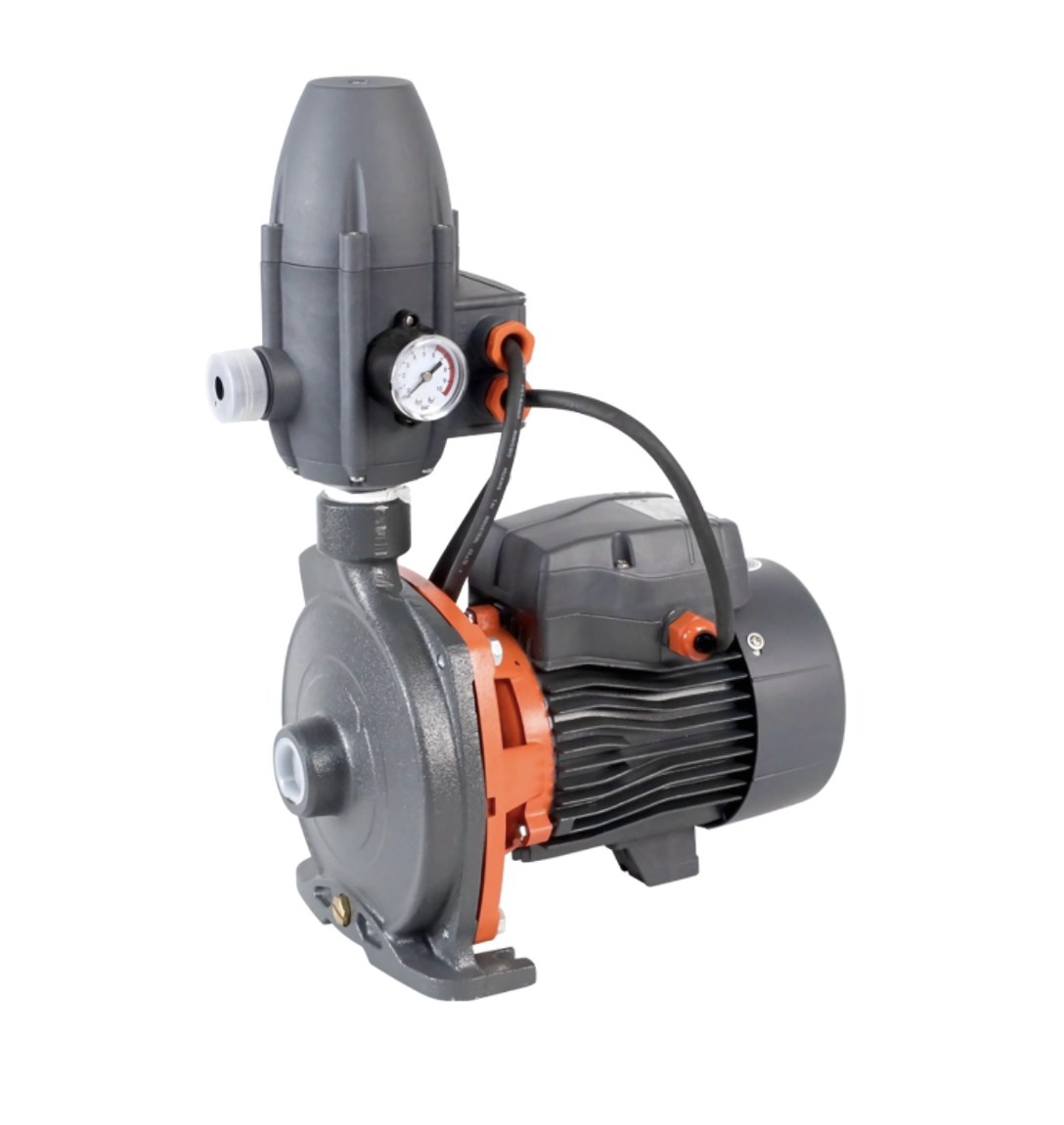

he Leo ACm75 Complete Centrifugal Pump with Controller offers a robust solution for clean water transfer and pressure boosting.
Pump Specifications:
- Model: ACm75 Centrifugal Pump
- Power: 0.75kW / 1.0HP
- Voltage: 220V – Single Phase
- Connections: 1" Female Inlet / 1" Female Outlet
- Insulation Class: F
- Protection Class: IPX4
- Max Ambient Temperature: +40°C
Automatic Switch / Controller Specifications:
- Voltage: 220-224V / 50Hz
- Max Current: 10A
- Starting Pressure: 1.5 bar
- Max Working Pressure: 10 bar
- Max Working Temperature: 60°C
- Protection Class: IP65
- Connection Thread: 1" Male
Applications: This pump is ideal for transferring clean water and non-corrosive liquids with similar physical and chemical properties. Its applications are diverse, including:
- Industrial water supply
- Urban water supply systems
- Pressure boosting in high-rise buildings
- Fire fighting systems
- Garden and agricultural irrigation
- Long-distance water transfer
- Heating, ventilation, and air conditioning (HVAC) circulation
- Boosting pressure for both cold and hot water systems
- Integration with other equipment requiring reliable water circulation.
